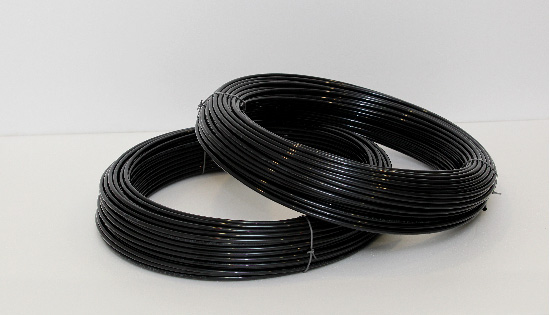

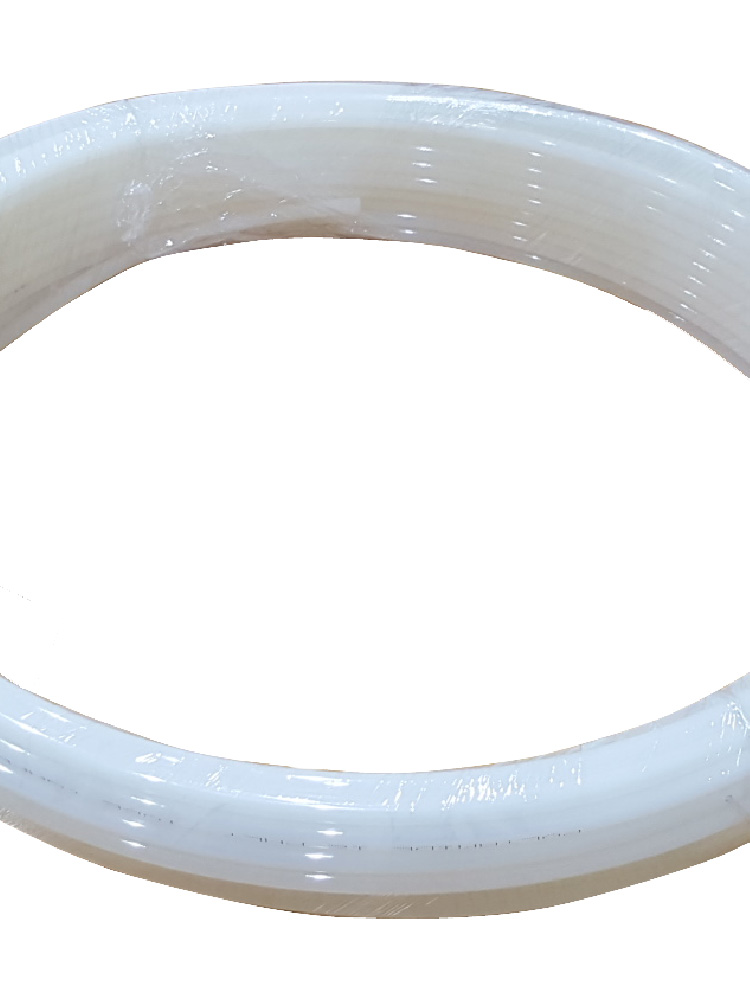

Misting System Tubes
Arasta Chemical Industrial Co LTD is an exporter of different types of tubes specially used for misting systems, high pressure fogging systems, dust suppression systems, and indoor and outdoor cooling solutions.
Free samples are ready to send to your address by Tnt-FedEx please just advise if you needed.
- High impact resistance at low temperatures
- UV and heat stability
- High pressure resistance
- Weathering resistance
- Easy to use with fittings
- Hydrolysis resistance
- Excellent diameter sensitivity
Technical Data / Physical Properties
| O. D. x I. D. (inch) | O. D. x I. D. (mm) |
|---|---|
| inch | mm size |
| 3/16" | 2,3x5 |
| 1/4" | 3,3x6,35 |
| 3/8" | 5x9,52 |
| 1/2" | 6,7x12,7 |
- Density: 1,02 g/cm3
- Shore - D Hardness: 67 D
- Melting Point: 173 ºC
- Water Absorption: 1,4 %
- Moisture Absorption: 0,7 %

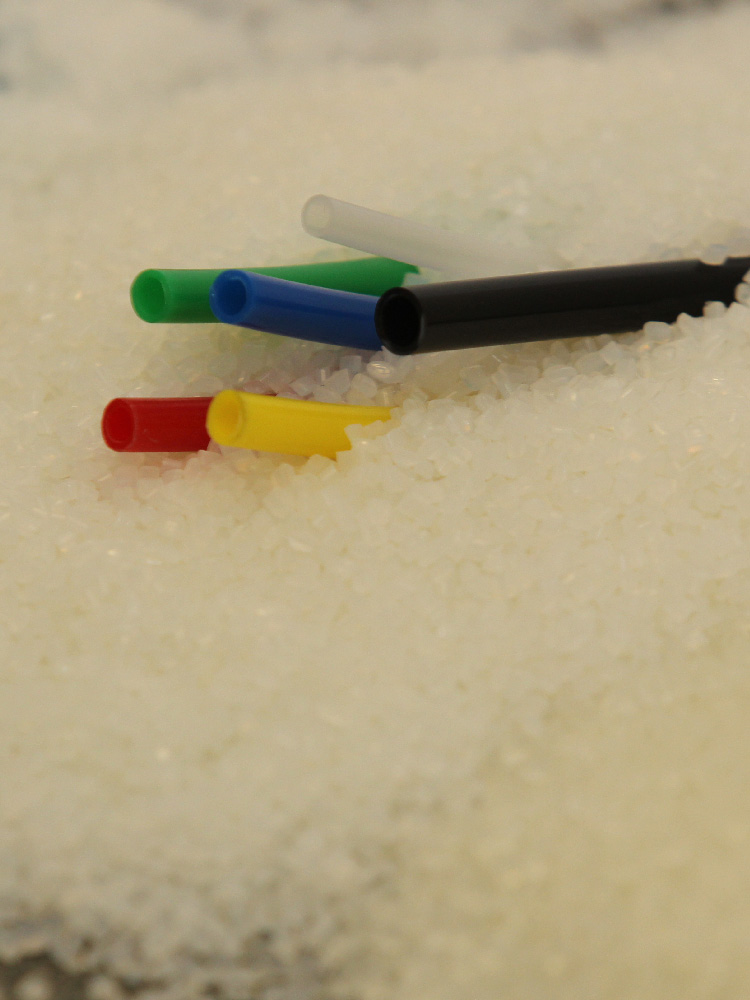

Raw Material Properties - Polyamide 12 ( Nylon 12 )
- Temperature range -40°C/+90°C (-40°F/+194°F)
- Working pressure 70-80 bar at 23C
- Burst pressure is 140 bar at 23C

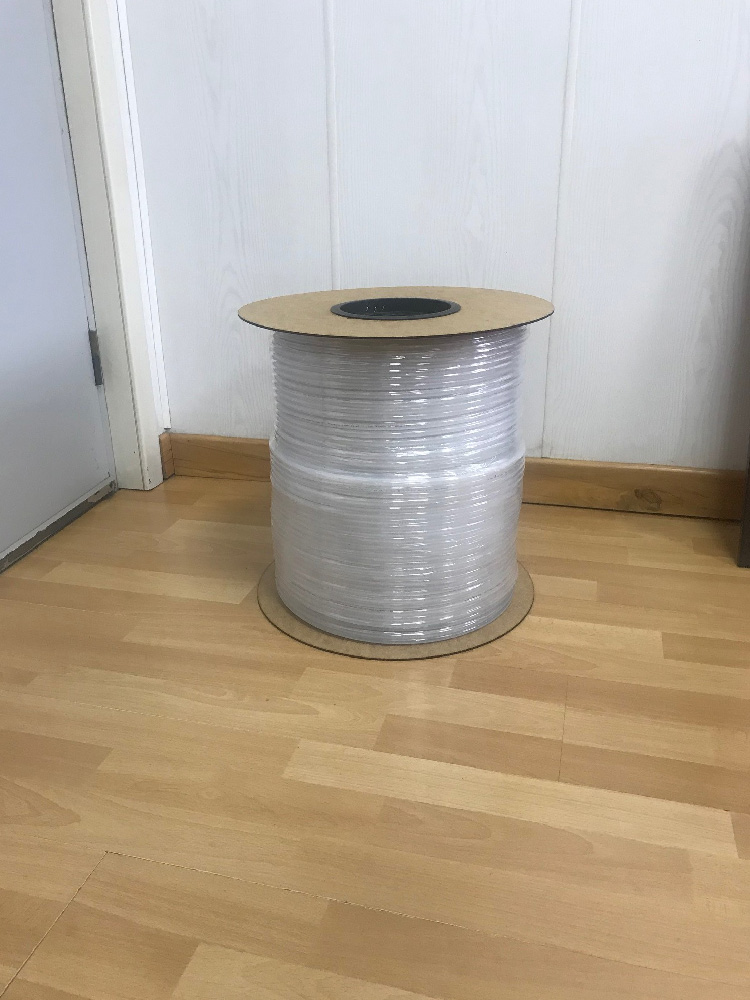

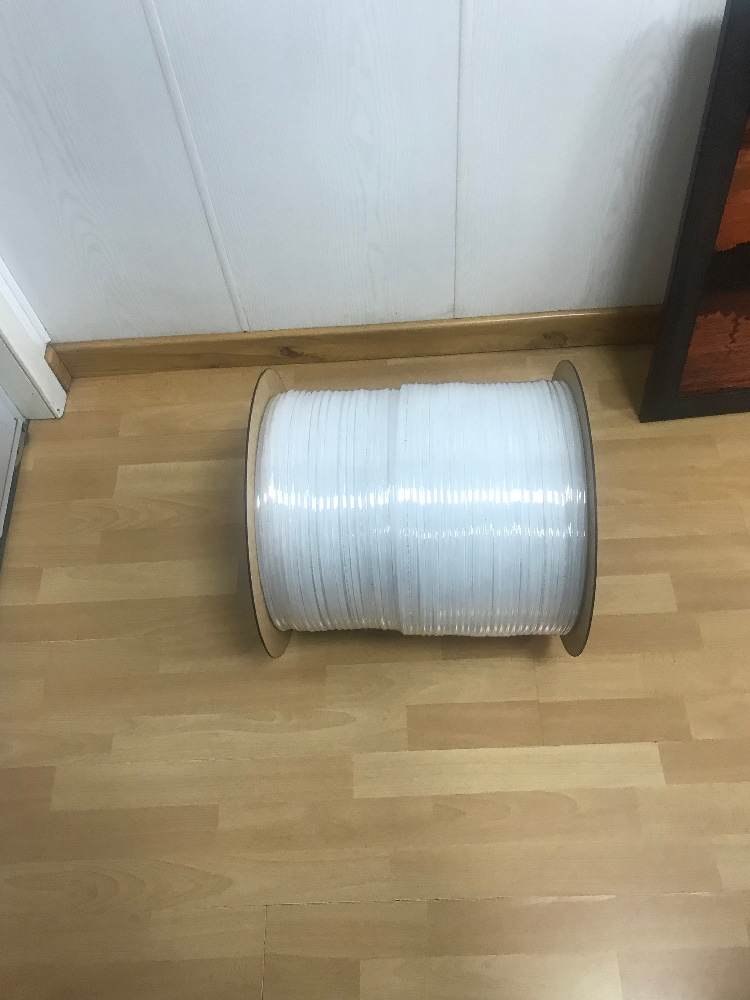

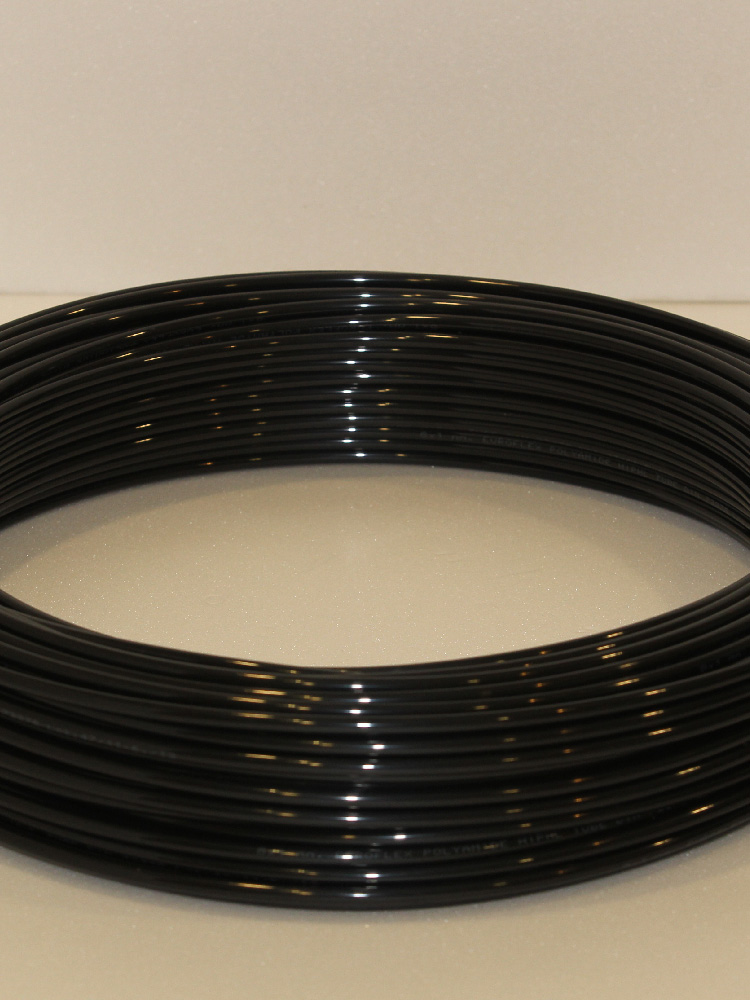

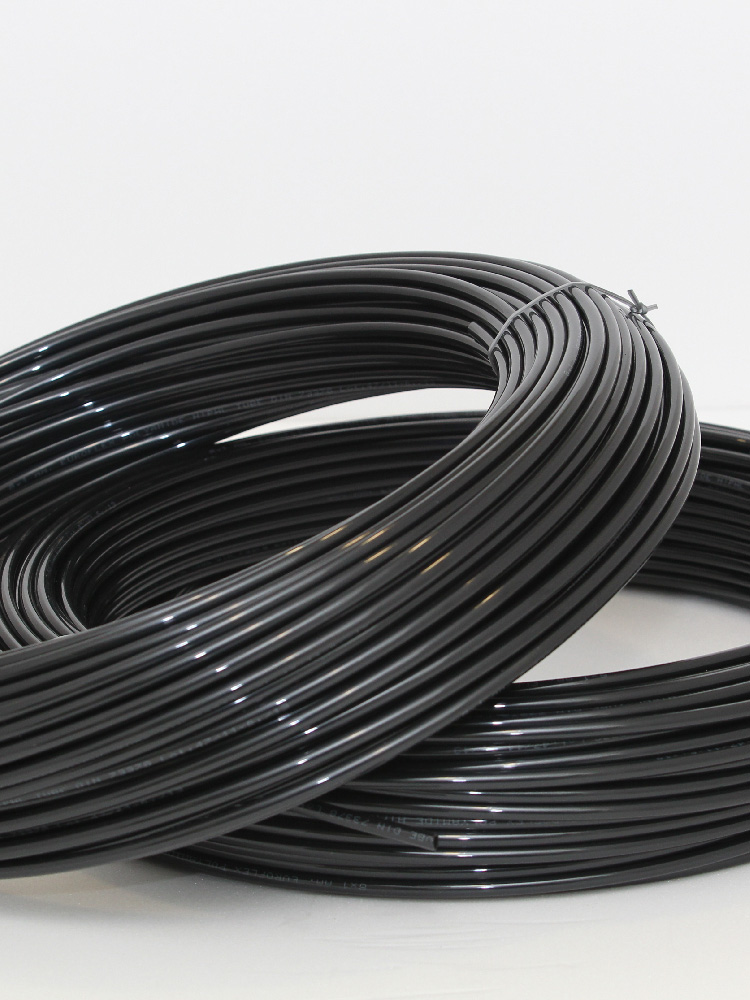

- Packing can be changeable with customers request. ( roll size or cutting straight tube , with reel or without reels )

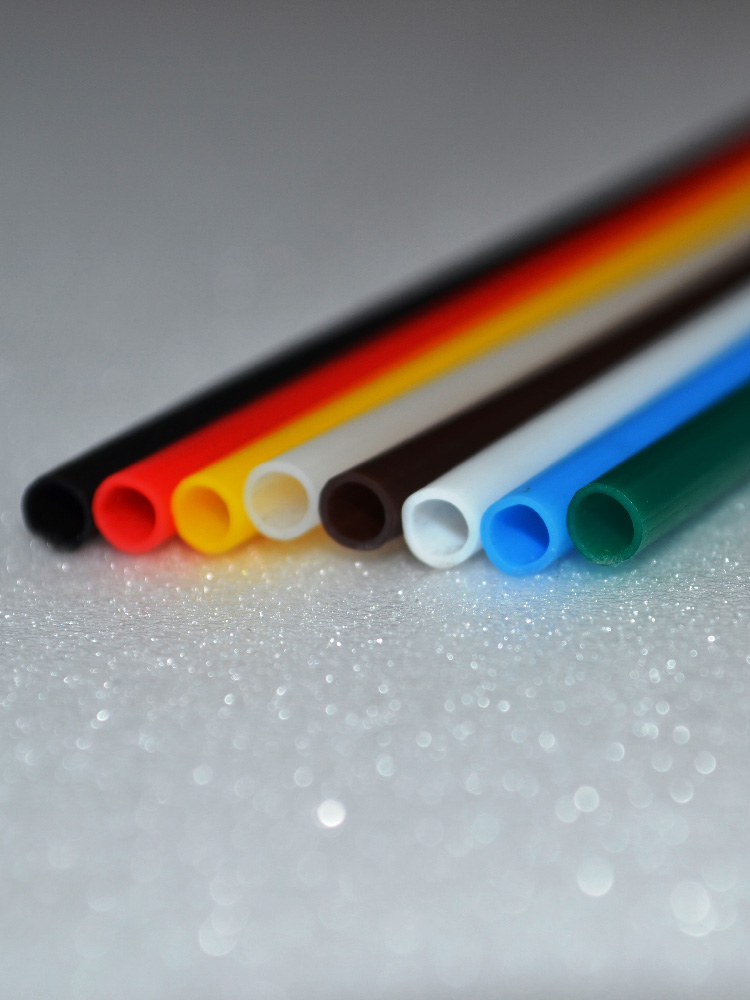

- We can produce custom colors with customer request.
- DIN 73378 / 74324 our quality standard in production is applying.
